DIN connectors are electrical connectors that are typically identified by their DIN standard. DIN was made by the German National Standards Organization, which stands for Deutsches Institut fur Normung. There Is a wide range of DIN connectors available along with various DIN standards for such connectors such as DIN 41524, which is used for audio and digital signals. Enrgtech offers an extensive range of DIN connectors from some of the known brands in the industry that will suit your application requirements in the best way possible.
Identification of DIN Connectors
DIN connectors are usually identified by their round shape, which shows a circular pattern of pins with the connector. These connector types usually come in both male and female types. Therefore, you can quickly identify DIN connectors, and there is no complicated method behind this.
Types of DIN Connectors
There are various types of DIN connectors available such as:

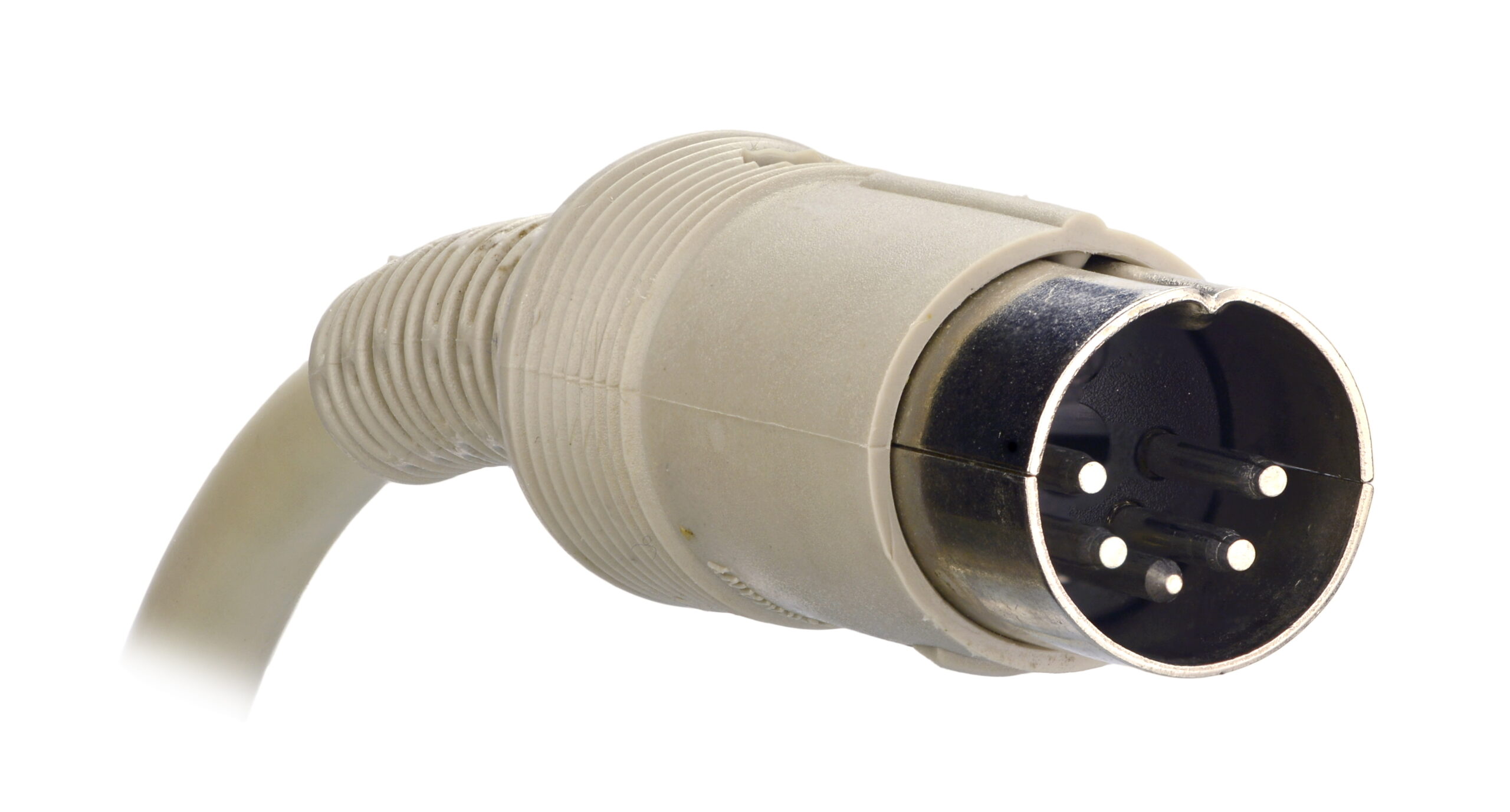

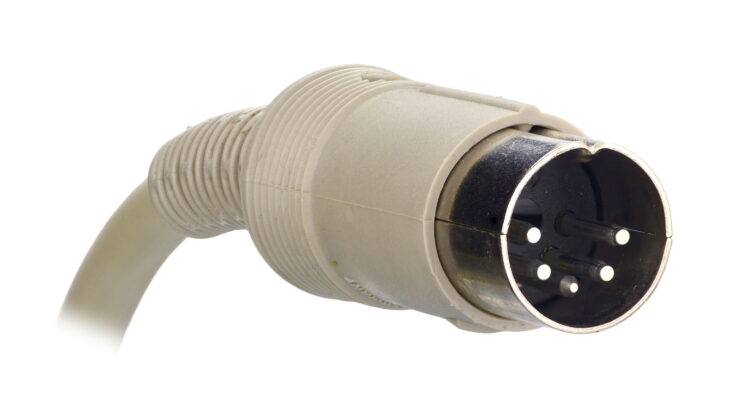

5-Pin DIN Connectors
As the name indicates, these connectors typically consist of 5 pins in a circular pattern and are commonly used for older computer keyboards.
S-Video Connectors
S-video connectors consist of 4 pins arranged in 2 rows and a keying block to prevent incorrection insertion.
PS/2 Connectors
Such connection types consist of 6 pins and a keying block. PS/2 connector has become an industry standard for connecting keyboards and mice even though it was initially used on PS2 consoles, which is why it is called PS/2 connector.
8-PIN Mini-DIN
These connectors feature 3 pins at the top and bottom and 2 pins in the middle. They are popularly used for portable video devices and projections.
Environmentally Sealed Connectors
Such DIN type connectors are manufactured for cable to cable, cable to boards, and cable to the device type of applications. They are mainly utilized in harsh environments.
Applications
DIN connectors are majorly utilized for equipment such as MDI instruments, computer keyboards, and specialized equipment. Another kind of connector is the mini-DIN connector, which is smaller in size and has horizontally arranged pins. They are commonly used for S-video connections, keyboards, and PS2.
