Introduction to Signal Conditioning in Automation
As industrial systems evolve and become more digitally controlled, the need for reliable data conversion between sensors and controllers becomes critical. Signal conditioners help meet this requirement by converting, isolating, and amplifying input signals for proper processing. They play a vital role in systems where analog controllers interact with field devices that generate digital or frequency-based outputs.
The PXF-20.924/RS signal conditioner is a robust, precision-engineered device designed specifically to convert frequency signals into corresponding analog voltage or current outputs. Its utility in automation, process control, and industrial electronics makes it a trusted solution among system designers and plant engineers.
This blog explains the working principles, key features, and integration benefits of the PXF-20.924/RS in real-world industrial environments.
What Is the PXF-20.924/RS Signal Conditioner?

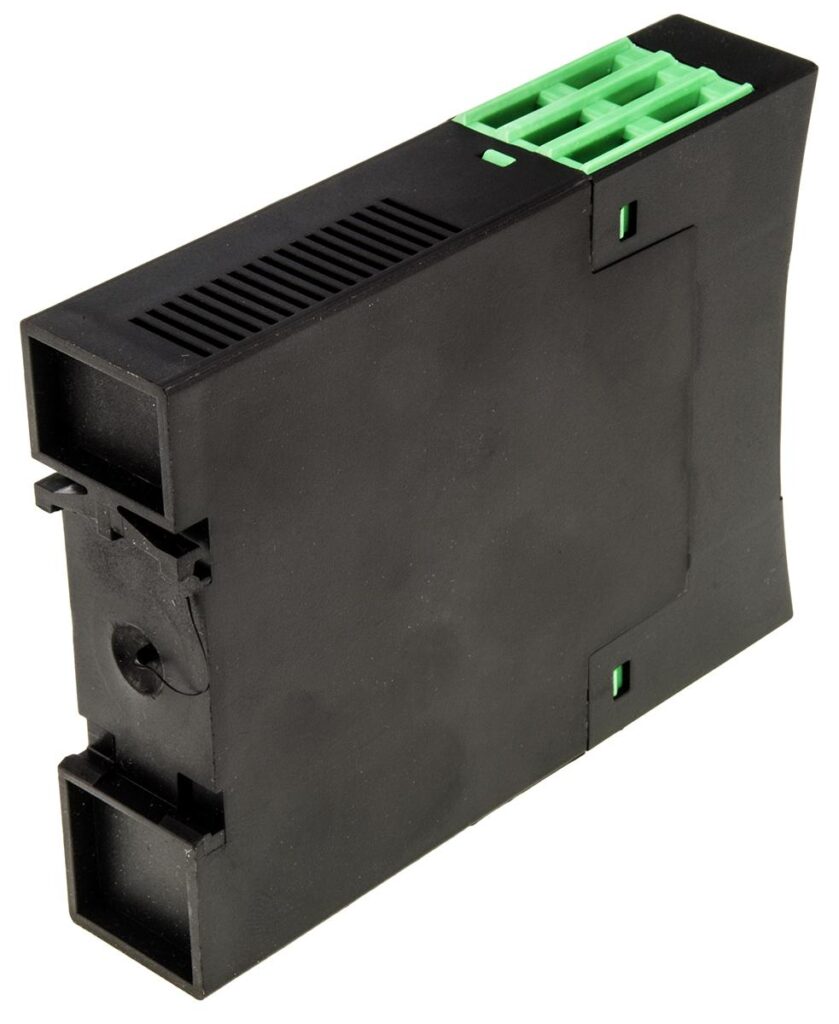

The PXF-20.924/RS is a frequency-to-analog converter developed by Brodersen Controls. It is designed to receive frequency inputs up to 5000 Hz and provide galvanically isolated analog outputs in either 0–10 V or 0–20 mA formats. This allows real-time frequency signals from field sensors or encoders to be interpreted by analog input modules within PLCs, DCS systems, or control panels.
The unit operates on a wide 12 to 48 V AC/DC power supply and features DIN rail mounting, making it ideal for control cabinet installations. It supports a wide range of frequency input types including NPN, PNP, and NAMUR signals, offering flexibility for integration with various sensor technologies.
Applications in Industrial Electronics
The PXF-20.924/RS signal conditioner is widely used across a variety of industries, including manufacturing, water treatment, HVAC, and transportation. Some common applications include:
- Measuring motor speed through frequency signals from tachometers
- Flow rate monitoring using turbine or paddlewheel sensors
- Tracking rotations or pulses in gearbox systems
- Monitoring conveyor belt or fan speeds
- Converting pulse outputs from flow meters into analog values for controllers
By converting variable frequency signals into linear analog outputs, this device ensures that control systems receive continuous, interpretable data that can be used for feedback loops, alarms, or automated adjustments.
Key Technical Features
The PXF-20.924/RS offers several technical specifications that make it suitable for advanced automation systems:
- Input frequency range: 0–5000 Hz
- Output signal: Configurable as 0–10 V or 0–20 mA
- Input types supported: NAMUR, PNP, and NPN sensors
- Power supply: 12–48 V AC/DC
- Galvanic isolation between input, output, and power supply
- Compact housing with DIN rail mount
- Low response time for fast signal conversion
These specifications ensure that the signal conditioner meets both performance and safety requirements for industrial applications.
The Role of Galvanic Isolation
Galvanic isolation is an essential feature in signal conditioners, particularly in systems with long wiring runs or electrical noise. The PXF-20.924/RS incorporates galvanic isolation between its input, output, and power supply circuits, helping to prevent voltage surges, ground loops, and signal interference.
This isolation enhances signal stability and protects sensitive control hardware from electrical damage. It also improves measurement accuracy, especially in environments with high electromagnetic interference or variable load conditions.
Integration With PLCs and Control Panels
One of the strengths of the PXF-20.924/RS signal conditioner is its seamless integration with programmable logic controllers and analog monitoring systems. The analog outputs can be wired directly into the analog input terminals of a PLC, enabling the controller to receive a real-time representation of the frequency input.
The device’s compact form factor and DIN rail compatibility simplify installation in both new and retrofit control panels. It requires minimal configuration and starts operating immediately upon connection, which is ideal for time-sensitive commissioning processes.
Additionally, its output signals follow a linear relationship with the input frequency, allowing easy scaling in PLC software or human-machine interfaces.
Built for Industrial Conditions
The PXF-20.924/RS is designed for use in challenging industrial environments. Its rugged plastic housing resists dust and moisture, while its internal circuitry is optimized to handle electrical noise. Whether deployed in outdoor enclosures, plant floors, or mobile control units, the conditioner maintains stable operation over extended periods.
Its wide input voltage range also allows compatibility with 24 V control circuits or dual-voltage cabinets, making it suitable for global installations with varied standards.
Benefits of Using a Frequency-to-Analog Signal Conditioner
Integrating a device like the PXF-20.924/RS in an automation system provides multiple benefits:
- Real-time data conversion from digital to analog domains
- Compatibility with a wide range of frequency-based sensors
- Improved noise immunity through galvanic isolation
- Reduced risk of false readings due to electrical interference
- Easier integration into analog-based data acquisition systems
For engineers working in process industries, using this device improves monitoring accuracy, speeds up troubleshooting, and ensures compliance with industrial signal transmission standards.
Importance of Verified Distribution
To ensure reliable operation and compliance with technical documentation, the PXF-20.924/RS should be sourced from authorized suppliers. Purchasing from trusted distributors guarantees product authenticity, access to manufacturer datasheets, and support for installation and commissioning.
In the UK and internationally, platforms like Enrgtech offer quick delivery and full part traceability. This makes the sourcing process more efficient and helps project teams meet tight deadlines in system development or maintenance operations.
Conclusion
The PXF-20.924/RS signal conditioner is a dependable and versatile tool for frequency-to-analog signal conversion. With its wide input support, robust galvanic isolation, and fast response, it is well-suited to the demands of modern industrial automation systems.
Its ability to convert high-speed frequency signals into clean, linear analog outputs ensures that controllers and monitoring systems can operate with precision and consistency. Whether used in speed monitoring, flow measurement, or motor control, the PXF-20.924/RS plays a vital role in keeping industrial systems intelligent, efficient, and safe
